Scenario - Virtual Machine snapshots with Portworx

In this scerario, we will create a virtual machine snapshot.

We have created a new virtual machine that we will be using for this exercise.

Virtual Machine Snapshots

Task 1: Create a VolumeSnapshotClass

In order to take snapshots, we need to configure a VolumeSnapshotClass.

Run the following from our terminal tab:

cat << EOF | oc apply -f -
---
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotClass
metadata:
  name: px-csi-snapclass
  annotations:
    snapshot.storage.kubernetes.io/is-default-class: "true"
driver: pxd.portworx.com
deletionPolicy: Delete
parameters:
  csi.openstorage.org/snapshot-type: local
EOF

Task 2: Take a snapshot of our new VM

Log in to the OpenShift Console.

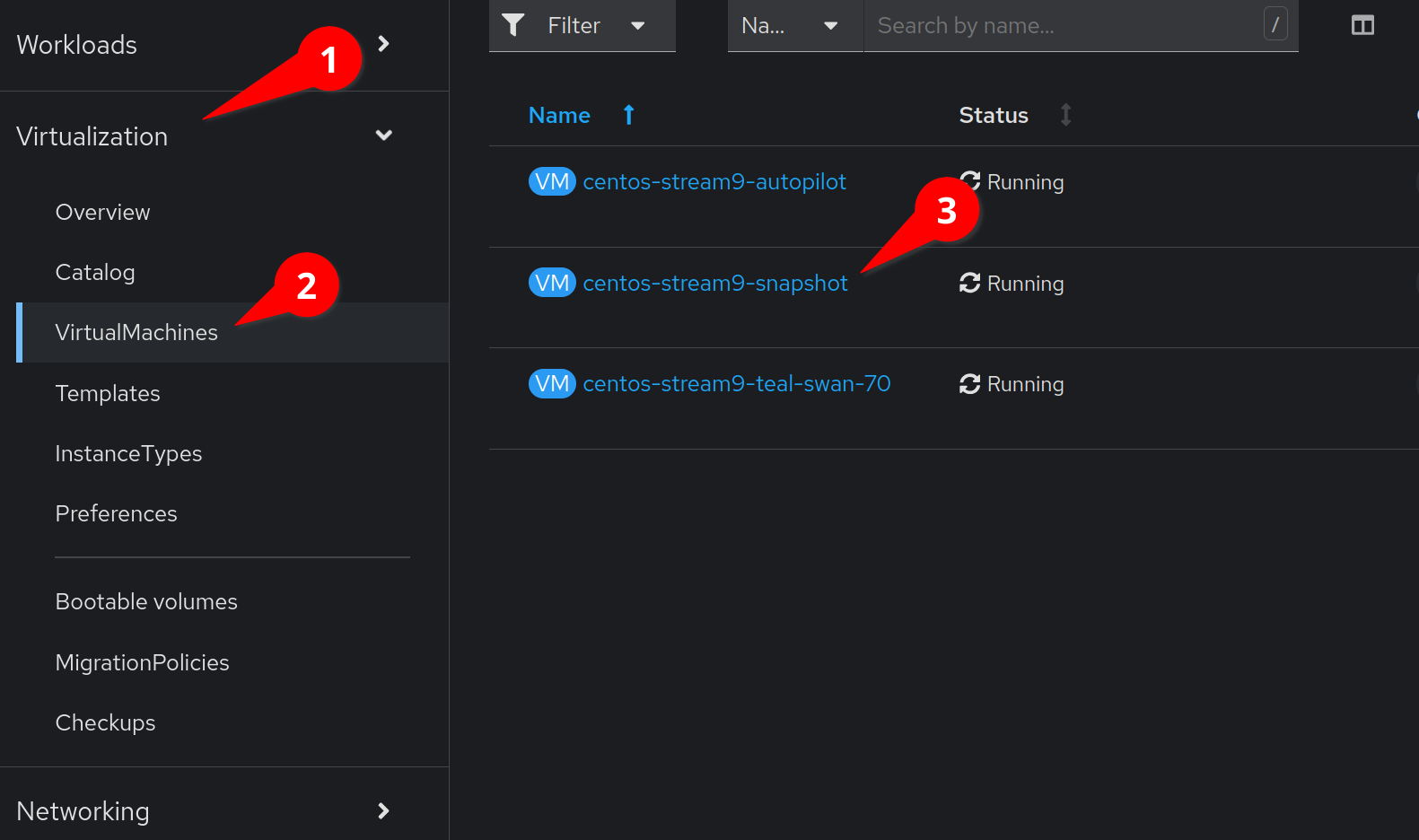

Click on the Virtualization menu item, followed by VirtualMachines. We can then find the virtual machine we will be using for this snapshot.

Click on the VM labeled centos-stream9-example.

Select VM

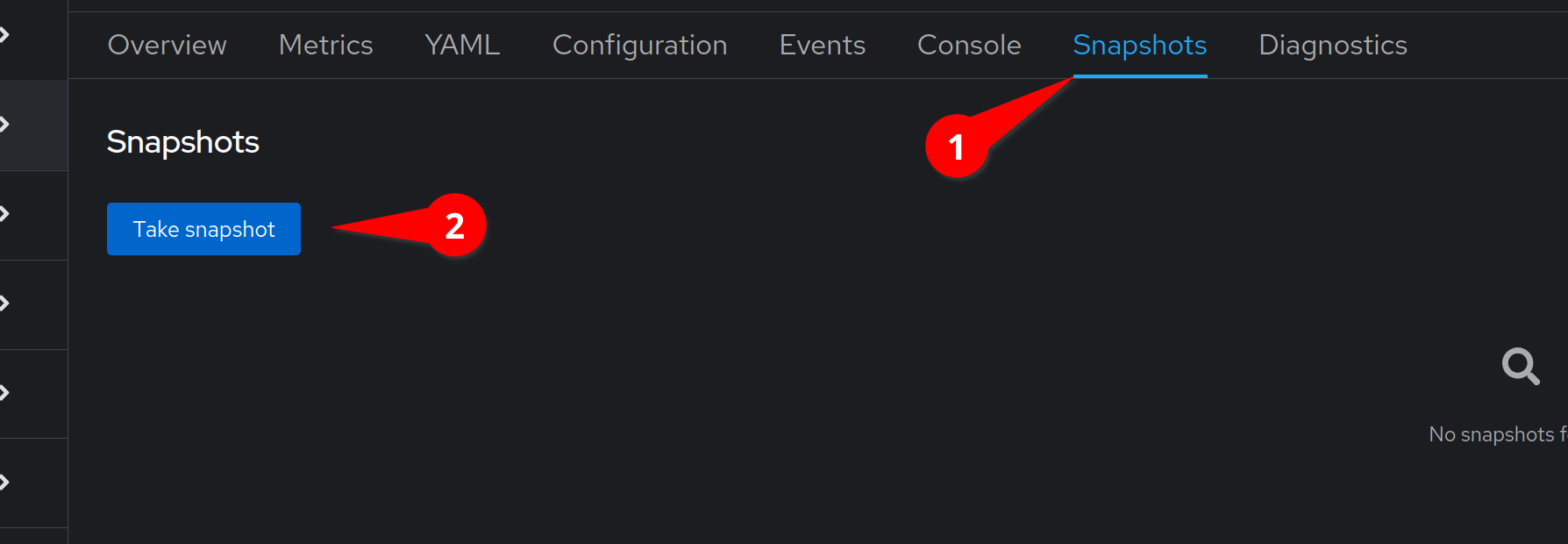

Navigate to the Snapshots tab and select Take Snapshot

Take Snapshot

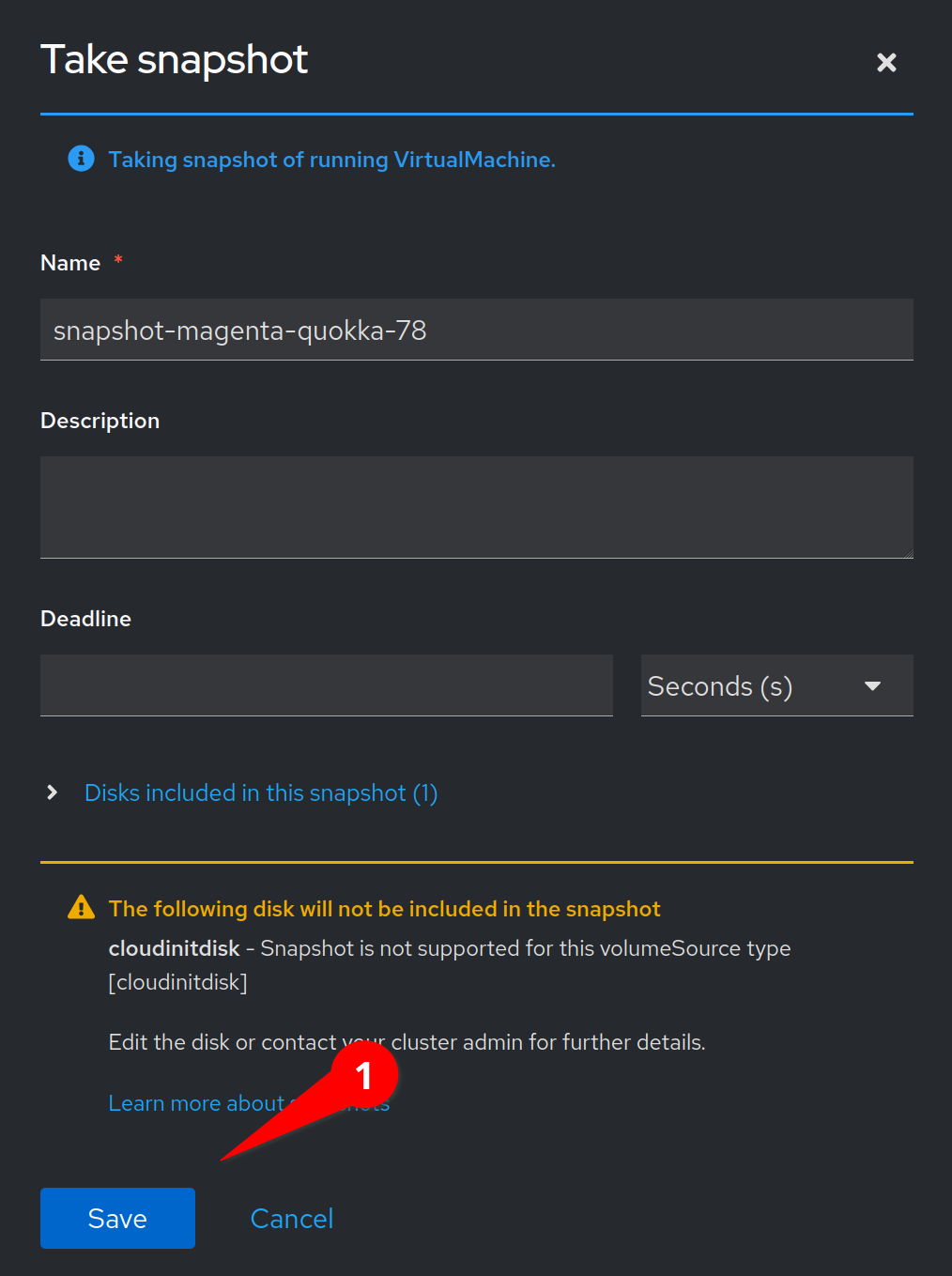

We can accept the default and select Save

You will see a warning that our cloudinitdisk will not be included in this snapshot. The cloudinitdisk is only used to configure our virtual machine and provide customizations. We can safely ignore this warning.

Save Snapshot

Task 3: Make a change to our VM

Let’s switch back to the command line. To make a change, we are simply going to make a change to our running virtual machine.

Let’s "accidentally" delete an important file:

virtctl ssh cloud-user@centos-stream9-example \
  -i ~/.ssh/id_rsa \
  -t "-o StrictHostKeyChecking=no" \
  -c 'sudo rm /etc/fstab'

Oh no! /etc/fstab is an important file for the operation of our Linux system. We can verify that the file is indeed missing by running:

virtctl ssh cloud-user@centos-stream9-example \
  -i ~/.ssh/id_rsa \
  -t "-o StrictHostKeyChecking=no" \
  -c 'cat /etc/fstab'

Let’s fix our VM.

Task 4: Restore our snapshot

Let’s log back in to the OpenShift Console.

Click on the Virtualization menu item, followed by VirtualMachines. We can then find the virtual machine we will be using for this snapshot.

Click on the VM labeled centos-stream9-example.

Select VM

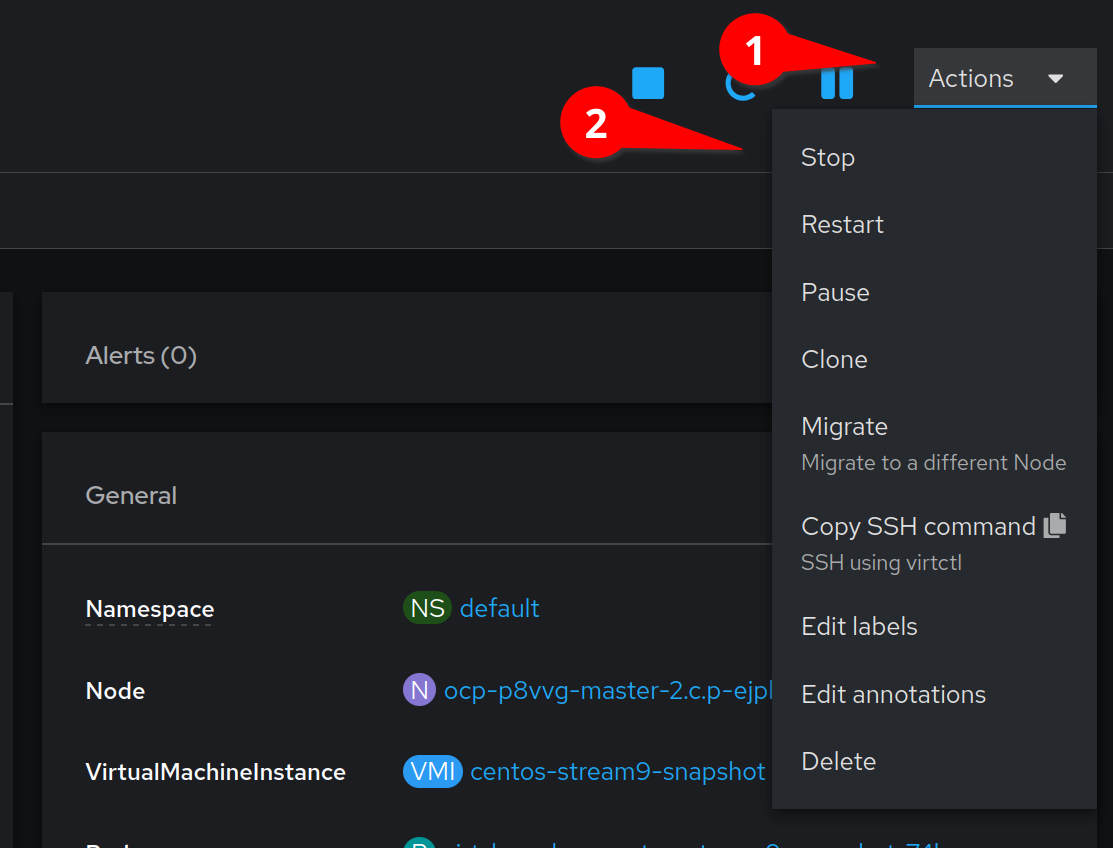

Click on the Actions menu, and select Stop

Stop VM

This will stop our running VM so that we can restore our snapshot.

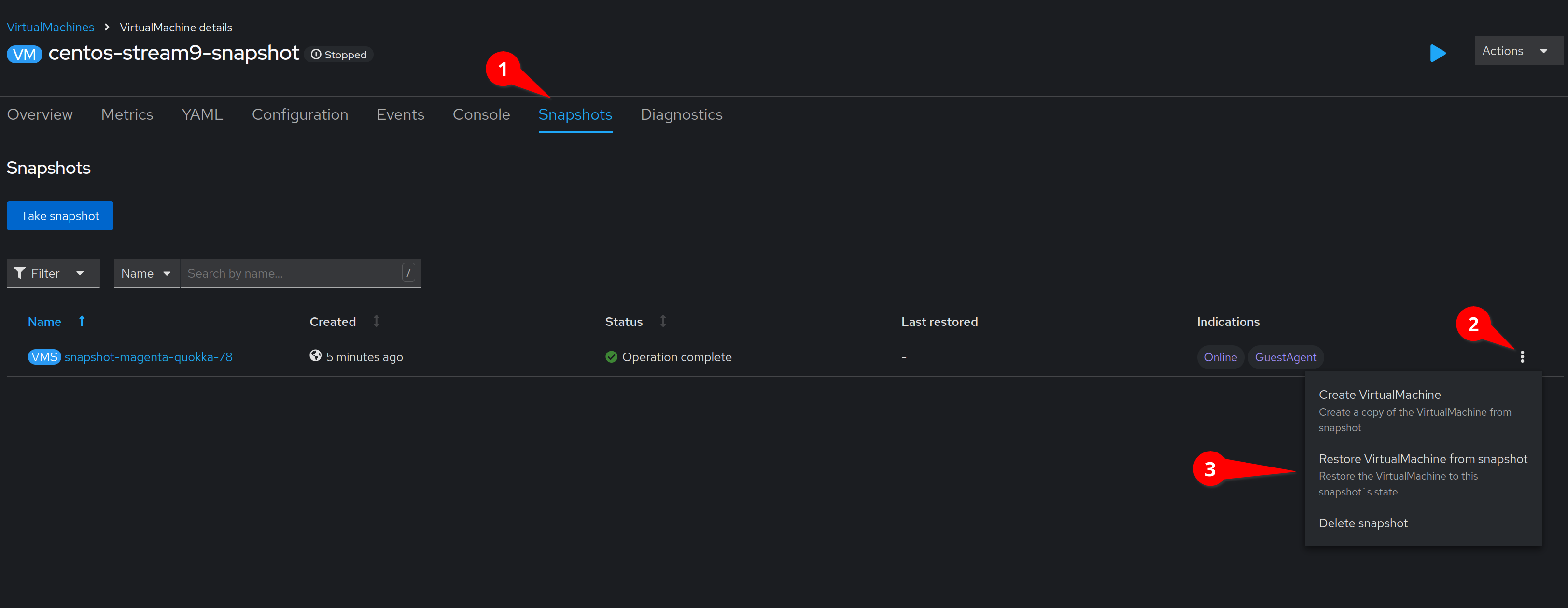

Click on the Snapshots tab. Then click on the kebab menu by the snapshot we created earlier and click Restore VirtualMachine from snapshot

restore VM

Restoring a snapshot is a distructive operation as it discards all changes that were made to a virtual machine since the snapshot was taken. To avoid loosing data, it is possible to take a snapshot before restoring our virtual machine.

Confirm the restore by clicking the Restore button.

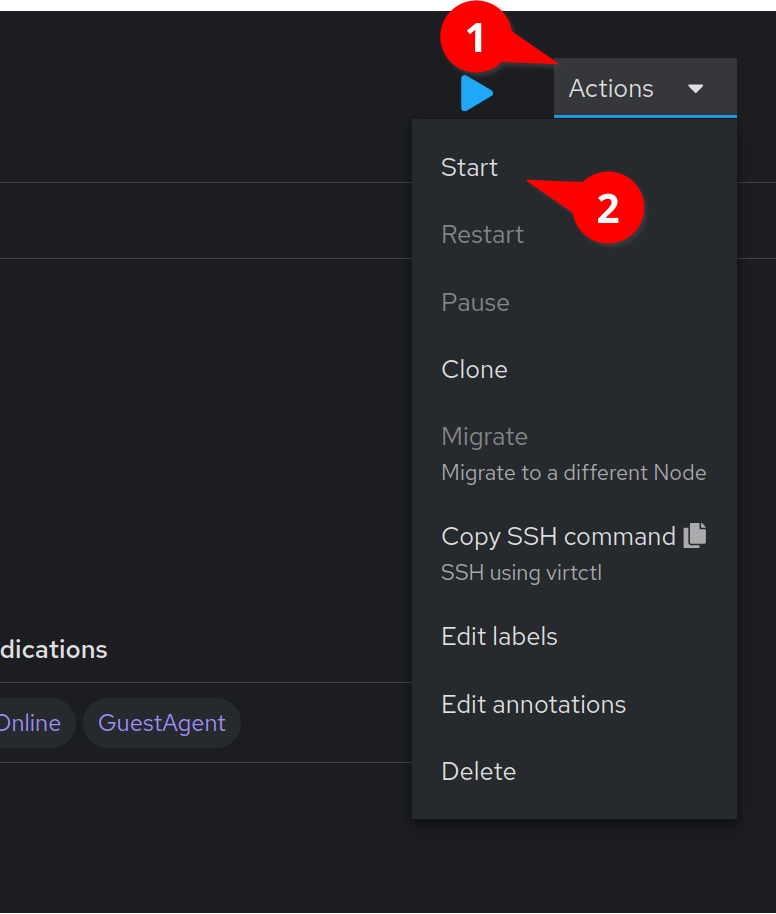

We can now start our virtual machine by clicking on the Action menu and clicking Start

start VM

We can check on the progress of our virtual machine’s boot by clicking on the Console or Overview tab.

Task 5: Verify our restore

After a couple of minutes, our VM should be running. Let’s verify that our fstab file is back in place:

virtctl ssh cloud-user@centos-stream9-example \
  -i ~/.ssh/id_rsa \
  -t "-o StrictHostKeyChecking=no" \
  -c 'cat /etc/fstab'

We can now see that the contents of the /etc/fstab file has been restored!
